How to R-JTAG any Phat HDMI Xbox 360

Horizon - Xbox Xbox Gaming
1

What you will need

  1. Soldering Iron, Solder, and Flux

  2. JR-Programmer v2

  3. R-JTAG Starter Kit
    or
    R-JTAG Ultimate Kit (you will not need item 2 or 3 if you buy this kit)

  4. NAND-X QSB v3 (you only need this if you purchased the starter kit)

  5. NAND-X Wire Install Cable (you dont need this if you get the ultimate kit)

Identifying what Xbox motherboard you have

Open Me

920×577 89.8 KB

Installing the JR-Programmer Drivers

Open Me

http://www.youtube.com/watch?v=2oSyOsQjBOA

NOTE: Installing the driver for the JR-Prgrammer is the same as the NAND-X but instead of using the NAND-X driver use the JR-Programmer driver
JR-Programmer Drivers

Reading the NAND
DO NOT - I REPEAT - DO NOT ATTEMPT TO WRITE ANY TIMING FILE TO YOUR R-JTAG. They are pre-programmed. Writing any other timing file to the R-JTAG without instruction from T-X may result in permanently damaging it

NOTE: You must be on dash 15574 or above to perform this hack

  1. Solder the NAND-X wires like so: [details=Open Me]
    661×1024 117 KB
    [/details]
  2. Then download J-Runner HERE
  3. Plug the power brick into the console and plug the NAND-X wire cable into the JR-Programmer but do not turn on the console
  4. Open J-Runner and plug in your JR-Programmer and click Read NAND. After that select what type of console you have

Installing the R-JTAG chip

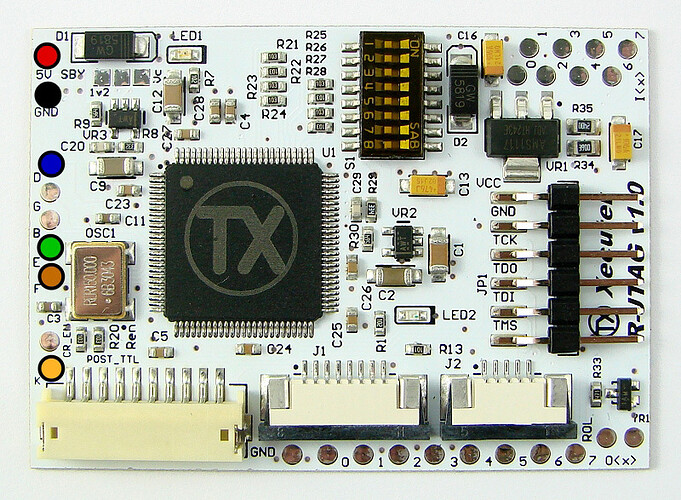

The chip itself and all the points you will be soldering to:

Open Me

800×587 266 KB

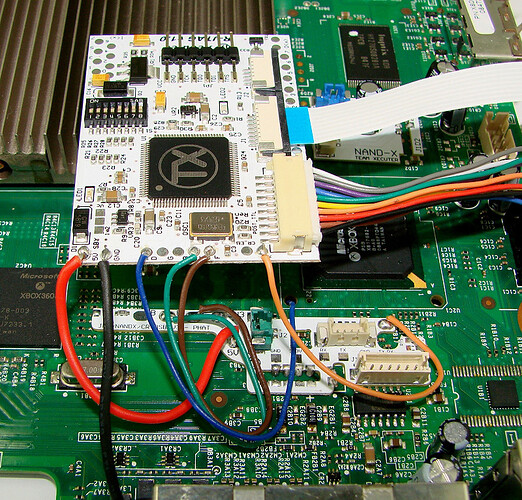

NAND-X QSB v3 installation:

Open Me

800×788 319 KB

Chip soldered to the NAND-X QSB:

Open Me

800×766 414 KB

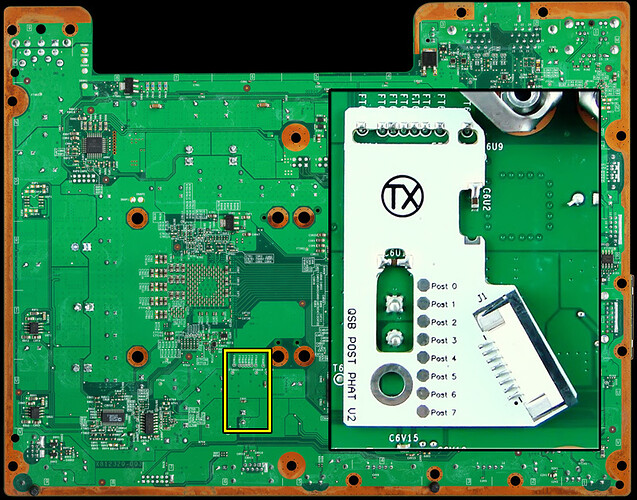

Post QSB (included in both kits):

Open Me

800×627 273 KB

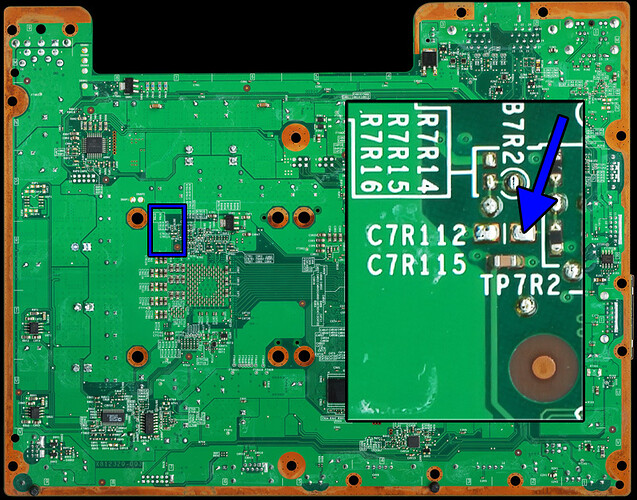

CPU_RST Point:

Open Me

800×627 288 KB

Alternate CPU_RST Point: [details=Open Me]

800×670 295 KB
[/details]

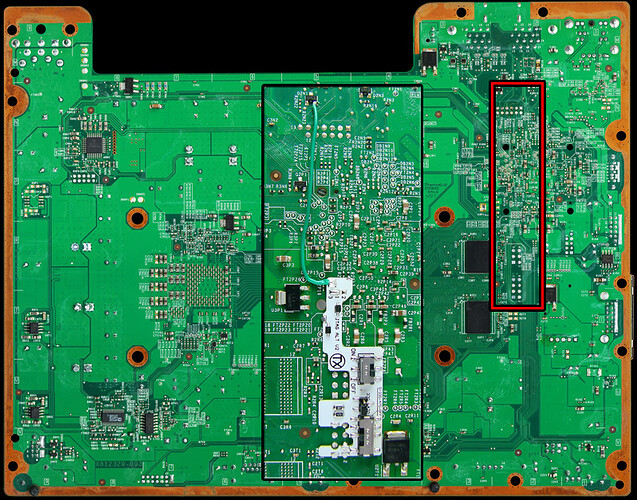

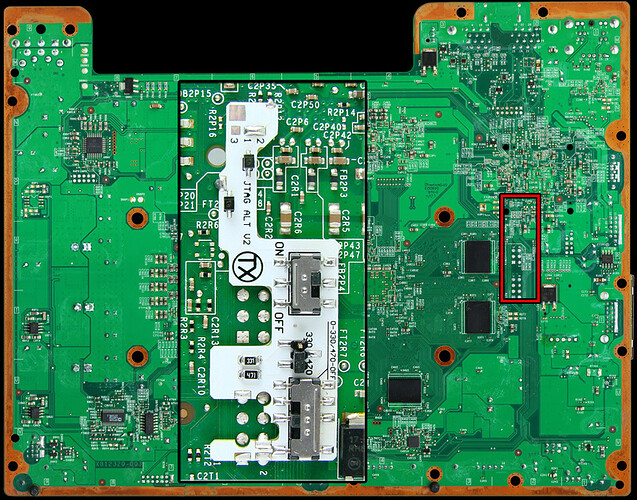

JTAG QSB (included in both kits):

[details=Open Me]

800×627 333 KB

800×394 178 KB
[/details]

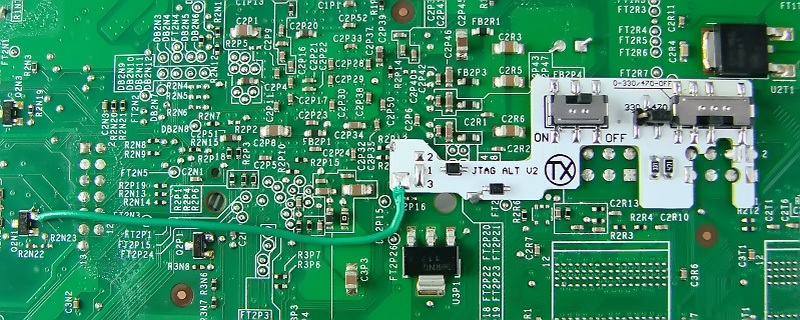

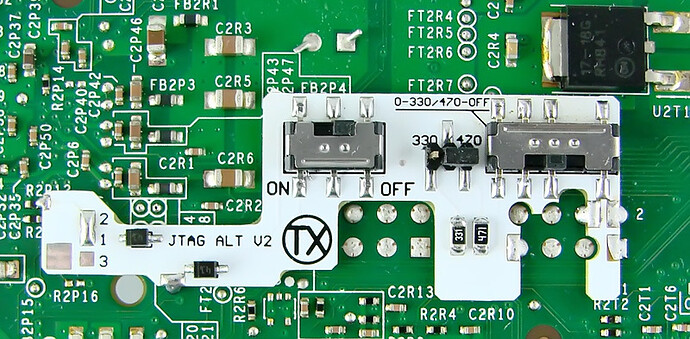

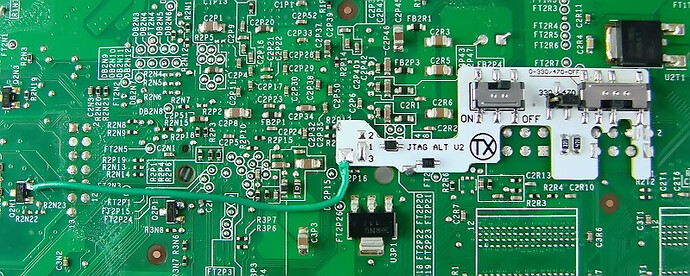

JTAG QSB (AUD_Clamp):

[details=Open Me]

800×627 340 KB

800×320 177 KB
[/details]

Final placement of the chip:

Open Me

800×629 198 KB

Writing Xell Reloaded/obtaining the CPU key

  1. In the Source File box select your previously dumped NAND and select what NAND type you have
  2. Tick the JTAG radio button
  3. Select AUD_CLAMP On or OFF depending on the JTAG QSB installation
  4. Create xell reloaded
  5. Make sure your Xbox has power but is not turned on
  6. Then Write xell reloaded
  7. Boot to xell, get cpu key

Writing the NAND

  1. In the Source File box select your previously dumped NAND and select what NAND type you have
  2. Tick the JTAG radio button
  3. Select AUD_Clamp depending on the JTAG QSB installation
  4. Select what dash you want under the dash dropdown menu
  5. Then click create image
  6. After creating the image plug your JR-Programmer into the PC if it is not, and connect it to the console
  7. Plug in the console to power but do not turn the console on
  8. Click write NAND
  9. Once done unplug the JR-Programmer and turn the console on
  10. If the console boots and you can run unsigned code then you are done, enjoy:).

Credits
Most of the credit goes to Team Xecuter for the guide and the exploit.
Some credit goes to me for writing the tutorial.
Source: R-JTAG Installation Source
